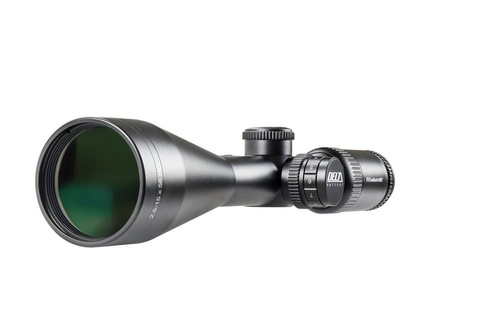

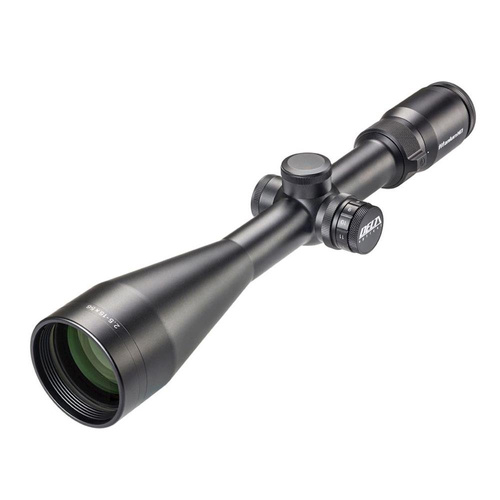

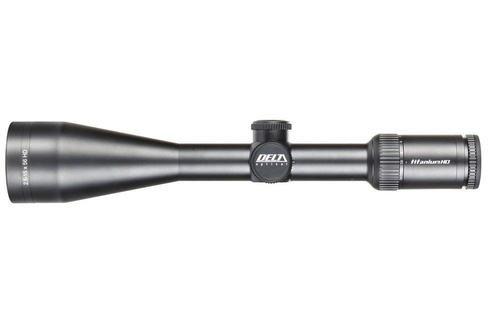

Delta Optical - Scope Titanium 2,5-15x56 HD 4A SB - DO-2454

The Delta Optical Titanium range of scopes is very popular in Europe and worldwide due to its high performance, common to all products in the range. Delta Optical Titanium scopes are of exceptional quality and precision. Each parameter has been refined with the end user in mind. The series is characterised by a high light transmission of approximately 92% for the entire optical system of the telescope, which enables hunting even in residual light, and high mechanical resistance, which makes it able to withstand the kickback even on high-powered weapons. In turn, Titanium HD series telescopes have been built with several innovative solutions for more comfortable and precise use of the scope. The HD optics provide very good image sharpness and, importantly, a wider field of view for easier target location.

The scope with excellent twilight parameters, designed for night hunting. The scope has a six-fold optical zoom and can achieve magnifications from 2.5x to 15x,, which gives a wide range of applications. With maximum magnification and parallax correction, the telescope is also suitable for precise distance shooting. At low magnifications, the telescope allows a very large exit pupil to be obtained, which makes it easy to fold down quickly. With the wheel's parallax correction and very good target contour mapping, you can shoot precisely over a considerable distance, even to a small target. The 4A SB grid has been equipped with five ballistic markers arranged every 7cm. The net is scaled for 10x magnification and a distance of 100m.

The light transmission as well as the mechanical strength have been confirmed by tests carried out in the German Institute DEVA.

Body material: Aluminium -70%, Brass - 20%, Steel - 10%

TECHNICAL DATA:
Scopes series: Titanium
Type of targeting grid: 4A SB
Symbol: DO-2454
The grid position: Second focal plane (SFP)
Minimal magnification: 2.5 x
Grid illumination: Yes, central point
Maximum magnification: 15 x
Cross adjustment range (Vertical/Level): 50 MOA
Lens diameter: 56 mm
Single click on the cross adjustment (MOA): 0.25 MOA
Output pupil: 11.6 - 3.7 mm
Diameter of the focal point: 11.4 (10x) mm
Distance from eye: 99 - 98 mm
Parallax adjustment: Side focus (15 m - ∞)
Tubus: 30 mm (1 part)
Angular field of vision: 8.22 - 2.12 °
Length: 365 mm
Twilight efficiency: 11.83 - 28.98
Weight: 742 g
Watertightness: 0.3 kg/cm2
Nitrogen filling: YES
Shock resistance: 6500 J
Operating temperature: -20 / 71 °C
Characteristic features: SF - parallax correction
Guarantee period: 120 months
