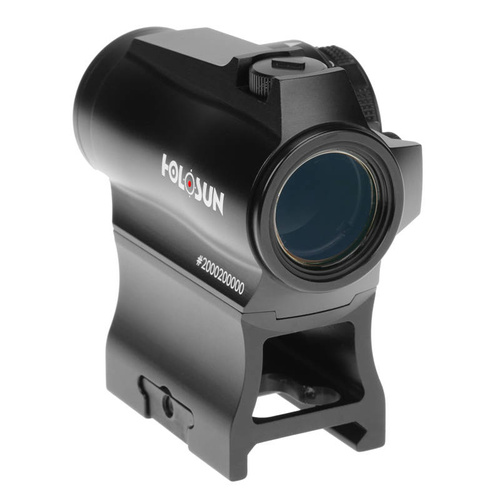

Holosun - HE503R-GD Gold Dot Sight - Low mount & 1/3 Co-witness Mount
HE503R-GD Gold Dot Sight Holosun Low mount & 1/3 Co-witness Mount
Gold Dot Sight HE503R-GD from Holosun, has the ability to choose 2 aiming points, a 2 MOA dot with a 65 MOA circle, and a 2 MOA dot only. This gold dot sight has two mounts in the set: low and high 1/3 Co-Witness.
The electronic control system combined with an efficient LED diode make the device highly efficient and stable, long-term operation. The system is powered by a single 2032 battery with a theoretical operating time 50,000 h at the sixth point intensity setting.
The viewfinder is equipped with a advanced lens system, multi-layered with reflective coatings. This solution allowed for a perfect transmission of visible light. The image visible through the lens is clear, bright and parallax-free.

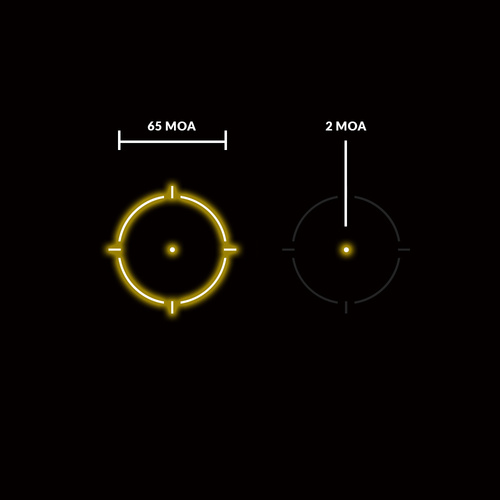

The Multi Reticle System used in the model allows you to select the shape of the aiming point depending on the situation or the type of weapon it is on. We have a classic 2 MOA dot or a combination of a dot and a circle of 65 MOA at our disposal. Basing the display of all points on one LED means that when changing, there is no need to reset the device again.
This model is equipped with 12 levels of aiming point brightness - 2 modes are designed to work with night vision devices. Their adjustment is carried out using a large knob located on the side of the housing, this solution makes adjustment quick and easy even in tactical gloves. Under the dial there is a compartment for the battery that powers the gold dot sight.
The housing of the HE503R-GD gold dot sight is made of durable aluminum, through to which it is able to withstand shocks with a force of 1000G. The sight has the IP67 degree of protection, which makes it resistant to water and dust.
Features:- Parallax-free optical system with unlimited distance from the eye
- Flowing design with very little restriction to the field of view
- Advanced LED technology with low power consumption, providing up to 50,000 hours of operation on a single CR2032 battery
- Durable lenses with advanced multi-layer coatings for full spectrum light transmission and high clarity
- CNC machined durable, shock-resistant T6061-T6 aluminum construction
- Waterproof housing that meets IP67 standard
- Two mounts included: 1/3 Co-Witness (mounted) and low mount
- Fits Picatinny or Weaver rails
- Battery compartment located under the brightness level adjustment knob

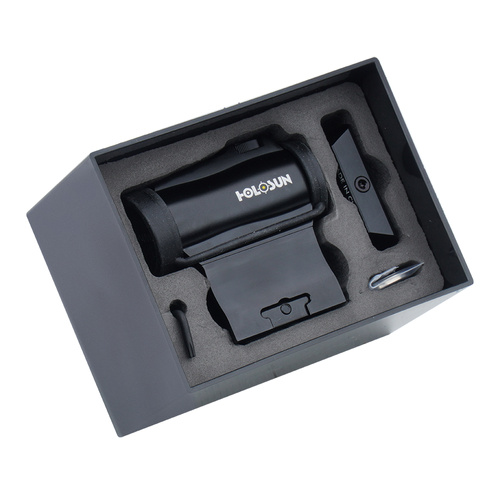

- Everything is packed in an aesthetic and durable plastic box
The lens in my red dot sight is skewed, should it be like that?
Yes, in the case of enclosed red dot sights with the emitter at 4 o'clock, the lens must be tilted to properly reflect light towards the user's eyes.
| Technical data | |
|---|---|
| Objective lens diameter | 20mm |
| Aiming point | Dot 2 MOA Dot 2 MOA in a circle of 65 MOA |
| Backlight source | LED |
| Eye distance | unlimited |
| Adjust | 1/2 MOA / one click |
| Parallax | none |
| Coatings | multi-layer |
| Zoom | x 1 |
| Power | CR2032 battery |
| Battery life | 50,000 h (6th level backlight) |
| Brightness control | 10 steps + 2 steps for night vision |
| Housing | Aluminum T6061-T6 |
| Housing color | Black |
| Regulating turrets | Covered with nuts |
| Mounting rail | Picatinny / Weaver |
| Waterproof design | IP67 / td> |
| Operating temperature range | -30°C to 60°C |
| Storage temperature range | -40°C to 70°C |
| Shock resistance | up to 1000 G |
| Dimensions | 71 x 36 x 69 mm (with 1/3 Co-witness assembly) |
| Weight | 169 g (with 1/3 Co-witness assembly) |
Included:
- HE503R-GD gold dot sight with 1/3 Co-Witness
- CR2032 battery
- Low mount
- Rubber lens covers
- Settings key
- Torx key
- Microfiber cloth
