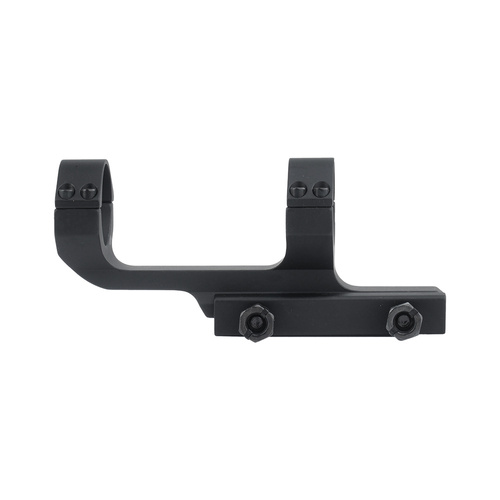

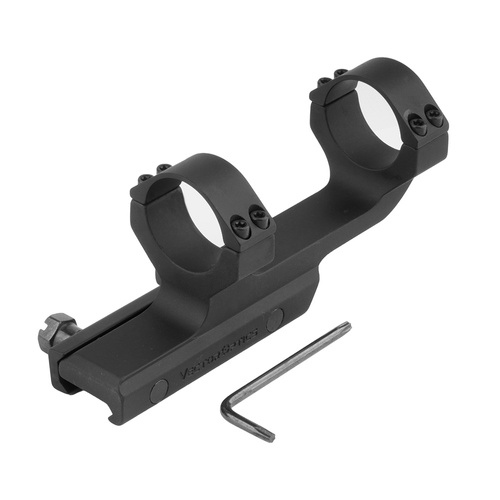

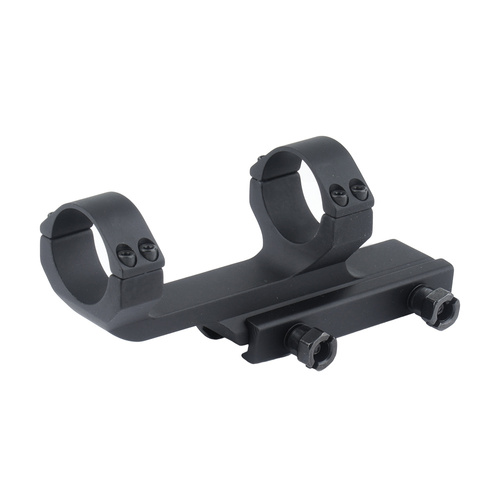

Vector Optics - One Piece Extended Picatinny Mount Integral Rings - 30 mm - High - SCTM-24A
One-piece Offset-type Assembly for a Scope, with a High Profile 30 mm Picatinny Vector Optics SCTM-24A
One Piece Extended Picatinny Mount Integral Rings from Vector Optics is a simple and reliable way to mount optics on a standard Picatinny rail. It is made of anodized aluminum 6061-T6, CNC milled. It is characterized by high machining accuracy and lightness, with simultaneous solidity and resistance to recoil.
Mounting on the rail is carried out by means of two screws with spring washers. It is designed for riflescopes with tube diameter up to 30 mm. Clamps They are fastened with 4 bolts, the distance between them is 64 mm.
The offset assembly works great on AR rifles, allowing the scope to be mounted in a slightly forward position, but still directly on the breech chamber - it ensures the right distance between the eyepiece and the shooter's eye.
Features:- One-piece, solid mount for an optical spotting scope
- Fully made of anodized aluminum 6061-T6, CNC milled
- Adapted to recoil
- Designed for riflescopes with a tube diameter of up to 30 mm
- 38mm high profile
- Each clamp is secured with 4 bolts
- In the Tactical Offset style - the mount is put forward, ensuring the right distance between the eyepiece and the shooter's eye when used on the AR platform
- The distance between the rings measures 64mm
- Designed for mounting on standard Picatinny rails
- Tightened with two screws with spring washers
| Technical data | |
|---|---|
| Overall length | 135 mm |
| Distance between rings | 64 mm |
| Profile height | 38 mm |
| Ring width | 16mm |
| Inner diameter of the ring | 30 mm |
| Number of bolts per ring | 4 |
| Color | Black |
| Weight | 190 g |
| Compatibility | Picatinny 21mm |
| Material | Aluminum 6061-T6 |
Included in kit:
- One-piece mount for 30mm scope One Piece Extended Picatinny Mount Integral Ring x1
- Allen wrench x1
