Primary Arms by Holosun - Colimator HE509 Solar Powered - ACSS Vulcan - HE509-RD-ACSS-R
Collimator HE509 Solar Powered ACSS Vulcan Primary Arms by Holosun HE509-RD-ACSS-R

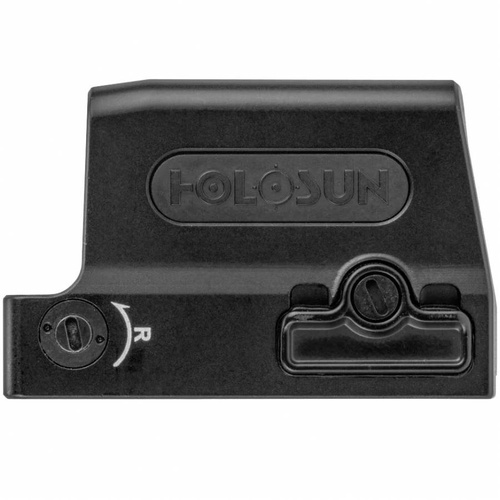

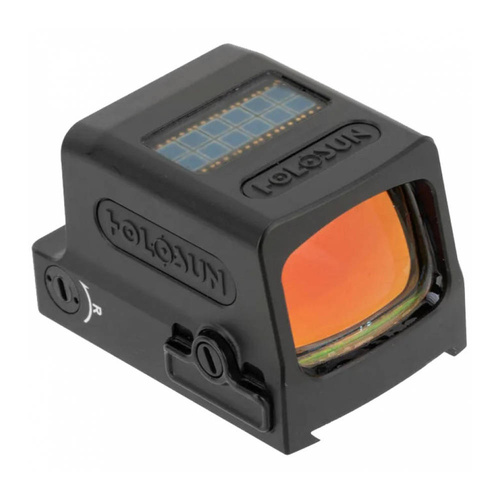

Holosun Micro Red Dot HE509-RD Solar Powered compact pistol collimator that uses Solar Failsafe solar panel power system. Besides, it has a Shake Awake battery saving system and ACSS Vulcan target reticle. Thanks to its dimensions, enclosed design and light weight, it will work well as a collimator for sport and combat shooting.
The HE509-RD uses a horizontal button layout, which will facilitate the activation of Lock Mode. When activated, it disables the operation of the buttons, preventing accidental changes to the sight settings. The body of the Micro Red Dot HE509-RD collimator is made of milled 7075 T6 aluminum. Thanks to being made from a single piece, the strength remains high and the weight correspondingly low.

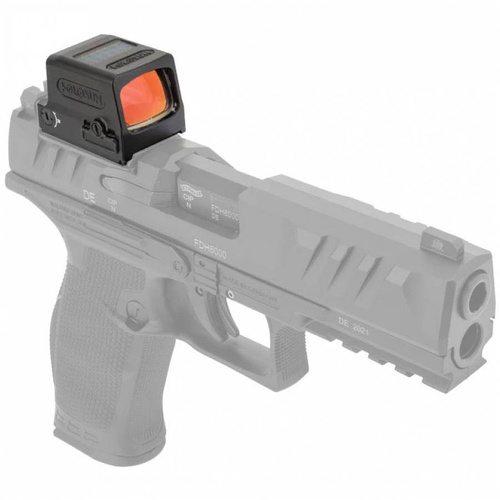

The unit is equipped with a side-sliding tray that allows easy replacement of the dedicated CR1632 collimator battery under field conditions, without removing it from the weapon. Mounting of the collimator on the gun is done with a steel plate, compliant with the 507C mounting standard. In order to protect the glass lens, the manufacturer used a multi-layer anti-reflective coating, with a high VLT coefficient.

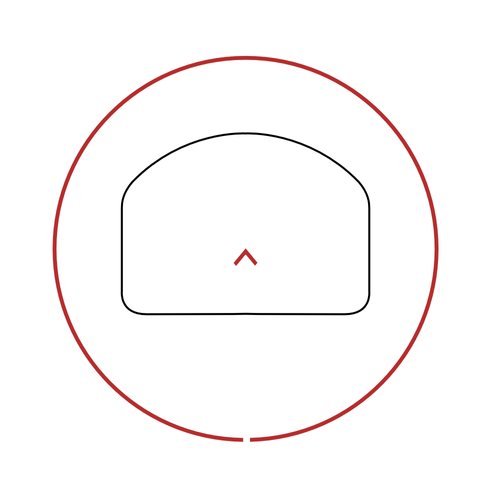

A key feature of the HE509 collimator is its ACSS Vulcan aiming point. Instead of the traditional red dot, the system uses a chevron (inverted V) mark, allowing the target to be aimed with its tip. The chevron is supported by a large circle with an option to turn it off, which comes in handy when moving between targets.
Features:
- Pistol collimator with ACSS Vulcan reticle
- Additional power supply in the form of a solar cell
- Built-in solar cell allows operation even with a discharged battery
- Enclosed sight design protects emitter from fouling
- Economical power management allows up to 50,000 h of operation on a single battery
- Target point display based on a single LED
- Operates in automatic (default) or manual mode
- Light sensor that adjusts the intensity of the dot depending on the light conditions
- Lens with multilayer coatings
- No parallax phenomenon
- Motion sensor to wake up the device from sleep mode
- Memory function of the last used aiming mark and its intensity
- Low battery indication (target mark starts flashing slowly)
- Lightweight and durable 7075 T6 aluminum housing
- Meets the requirements of IP67 protection class
The Holosun HE509-RD collimator with ACSS reticle does not have the same base as the 509T (models without ACSS reticle), which means it is not compatible with the mounting plates dedicated to the Holosun 509T. In addition, the included 509c mounting plate is not compatible with ZEV or Shadow Systems style RMR interfaces.
The lens on my collimator is crooked, should it be like this?
Yes, for closed collimators, where the emitter is placed at 4 o'clock, the lens must be skewed to properly reflect the light towards the user's eyes.
| Technical data | |
|---|---|
| Type of aiming point | ACSS Vulcan |
| Lens size | 23 x 16 mm |
| Illumination source | LED |
| Distance from the eye | Unlimited |
| Adjustment stroke of point position | 1 MOA / click |
| Point position adjustment range | +/- 30 MOA |
| Power supply | Solar cellCR1632 battery |
| Battery life | Up to 50,000 h (dot, average brightness level) |
| Brightness adjustment | 10 degrees + 2 degrees for night vision |
| Vibration resistance | up to 5000 G |
| Protection class | IP67 |
| Operating temperature range | -30°C to 60°C |
| Storage temperature range | -40°C to 70°C |
| Housing material | Aluminum 7075 T6 |
| Dimensions | 40 x 31 x 28 mm |
| Weight | 63 g |
| Color | Black |
