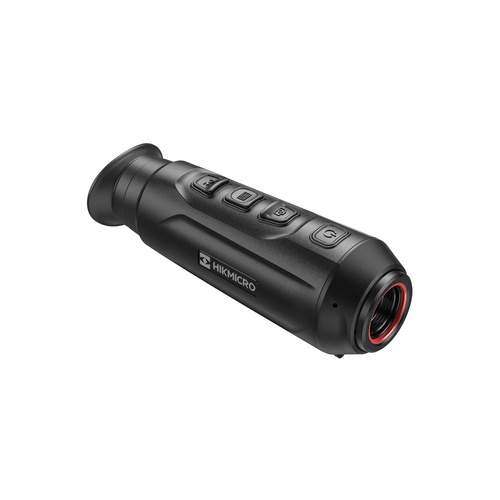

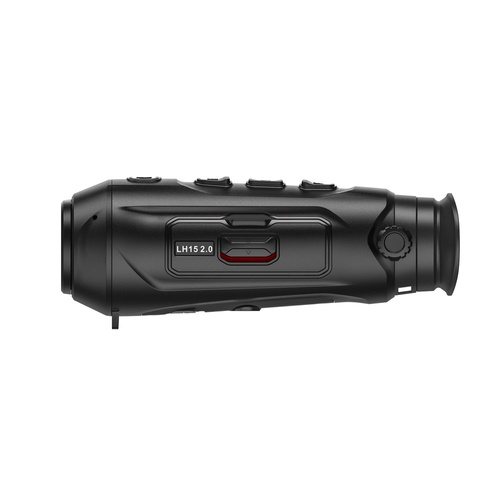

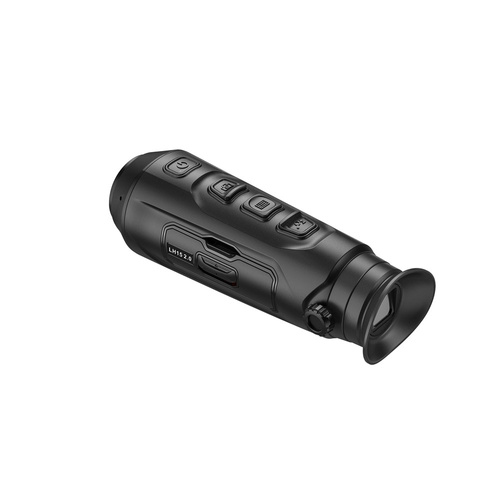

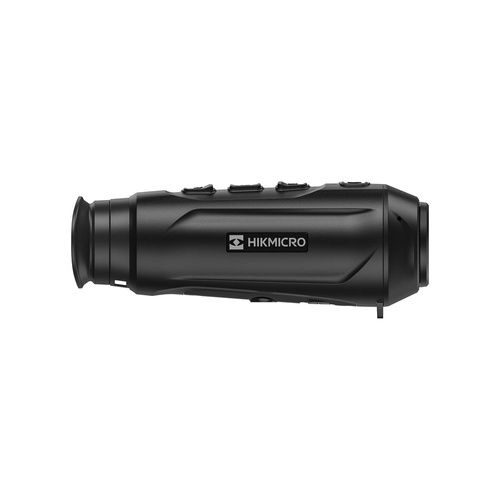

HIKVISION - Thermal Imaging Camera HIKMICRO Lynx 2.0 LH15 - Black - HM-TS83-15S1GW-LH15
Thermal Imaging Camera HIKMICRO Lynx 2.0 LH15 Black HIKVISION HM-TS83-15S1GW-LH15
HIKMICRO Lynx 2.0 infrared band thermal imaging camera from HIKVISION. It allows the user to observe a designated area based on the temperature difference occurring in objects. The human eye naturally cannot perceive waves in the infrared spectrum, but the monocular's built-in VOx Uncooled Focal Plane Arrays 12 μm sensor with 384x288 px resolution already does.
The NETD's high thermal sensitivity of less than 20 mK, combined with a 0.39" OLED screen, makes it possible to display an image composed of more than 110,000 measured points at 50 Hz. In addition, the recorded image can be displayed in one of four modes - Black Hot, White Hot, Red Hot and Fusion. The design of the eyepiece with a shield allows you to comfortably put your eye to the device.
The camera can be comfortably operated even with tactical gloves, this is possible due to the large and rubberized buttons on the top of the housing. The device is powered by a replaceable 18650 battery with a capacity of 3200 mAh. You can use a 3.6-volt, 19x70mm battery or an external power supply such as a powerbank with 5V DC/2A specifications, via a USB-C port, which can be used to charge the battery.
The device's aluminum housing is highly resistant to damage, and thanks to its sealing it meets the IP67 waterproof rating standard. The 15mm-diameter lens has a fixed focus, which, despite being non-adjustable, provides a larger baseline field of view, thanks to a magnification order of 1.4x. In doing so, it can still be adjusted for dioptric angle.
The camera allows you to record or take photos, which can be stored in the built-in 16GB eMMC memory. In addition, the monocular has a static rangefinder function, which can estimate the approximate distance of the user from the object being measured. The camera's base zoom can be increased up to eight times, thanks to the implemented zoom.
Features:
- Infrared thermal imaging camera for observing the environment
- Base zoom 1.4x, maximum possible 11.2x
- Total detection range up to 750m
- High sensor resolution of 384x288 px
- Quick startup - within three seconds
- Ability to record and take pictures
- Built-in eMMC memory of 16 GB
- Form factor of a handy and lightweight monocular
- OLED 0.39" screen with a resolution of 1024x768 px
- Displays images in one of four modes
- Rubberized buttons
- High NETD thermal sensitivity of less than 20 mK
- Integrated static rangefinder
- Noise reduction and image capture enhancement technologies
- Powered by an 18650 rechargeable battery or a 19x70mm 3.6V battery
- Operating time up to 6.5 h
- Power saving mode with 75° vertical and 70° horizontal tilt
- Sealed aluminum housing with IP67 rating
| Technical specifications | |
|---|---|
| Sensor | VOx Uncooled Focal Plane Arrays 12 μm |
| Sensor resolution | 384x288 px |
| Refresh rate | 50 Hz |
| Pixel spacing | 12 μm |
| NETD (Thermal Sensitivity) | less than 20 mK |
| Lens | 15 mm F1.0 |
| Detection range | up to 750 m |
| Field of view at 100 m (at 1.4x zoom) | 30.8x23 m |
| Minimum focusing distance | 1,5 m |
| Zoom range | From 1.4x to 11.2x (8x) |
| Display type | OLED |
| Display resolution | 1024x768 px |
| Display diagonal | 0,39" |
| Display modes | Black HotWhite HotRed HotFusion |
| Output Pupil | 6 mm |
| Output pupil distance | 20 mm |
| Diopter adjustment | from -5 to +3 |
| Built-in memory | eMMC 16 GB |
| Power supply | 18650 rechargeable battery3.6V battery with 19x70mm dimensionsPermanent USB-C 5V/2A power supply |
| Working time | Up to 6.5 h |
| Protection class | IP67 |
| Working temperature | from -30°C to +50°C |
| Material | Aluminum |
| Dimensions | 164 x 56 x 61 mm |
| Weight (without power supply) | 272 g |
| Color | Black |
Kit components:
- HIKMICRO Lynx 2.0 monocular
- 18650 rechargeable battery
- Charger
- USB-C cable
- Microfiber cloth
- Wrist strap
- Cover
- User manual
