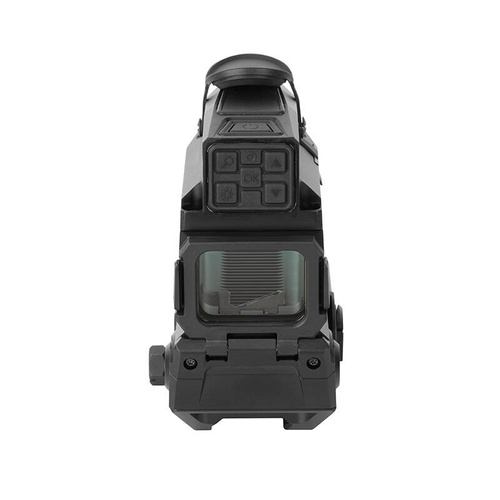

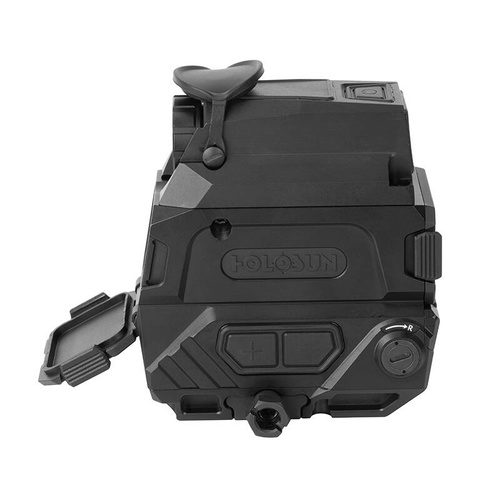

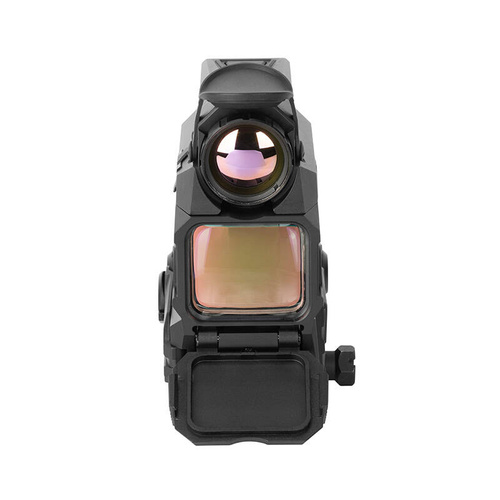

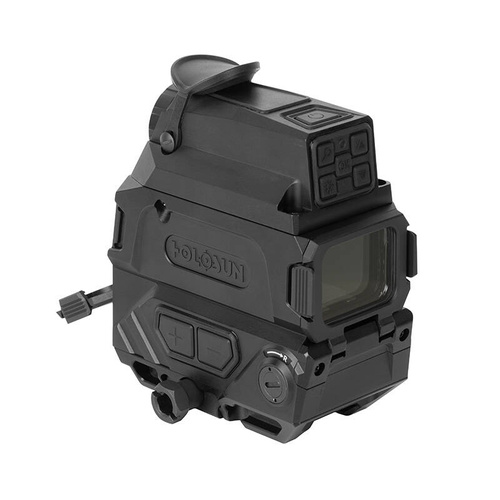

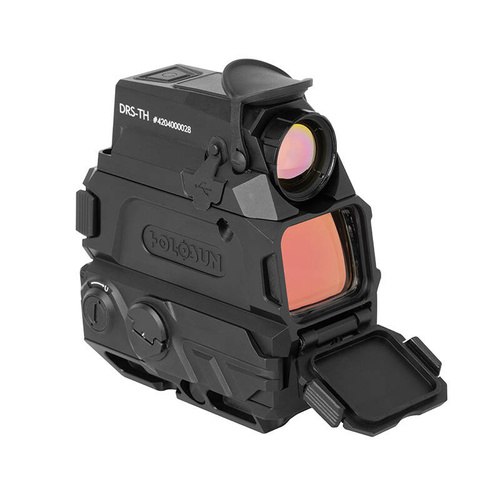

Holosun - Closed Collimator TH - Thermal Vision - OLED - 18350 - DRS-TH
Closed Collimator TH Thermal Vision OLED 18350 Holosun DRS-TH
DRS-TH collimator sight with thermal imaging function. This is a highly professional sight with a compact design, which is enhanced with an advanced thermal imaging system. The sensor captures the observed environment and thermal waves converting them into an image, completely without external light. The sensor tracks a 256 by 192 dot matrix simultaneously, which it displays on an integrated OLED screen.
In addition, the thermal imaging system is enhanced with internal storage and the ability to record the image for later playback. Power for the entire device is supplied by two 18350 rechargeable batteries, which are included in the kit, or two CR123 batteries. Only rechargeable batteries can be charged with the cable, in the case of batteries, the use of the cable may result in damage to the device.
Weapon mount in Picatinny standard secured by a solid bolt, which can be easily operated by hand. The whole construction is made of high-quality materials, and the sight itself meets the IP67 standard. The DRS-TH collimator will allow versatility and freedom of operation both during the day and night. It will work best in open spaces away from mirrored surfaces such as glass or mirrors.
We also use the USB cable to view the content in the memory on a computer, for example. The display image is refreshed at 50 FPS. In addition, a single picture can be taken. The collimator itself is as advanced a design as the thermal imager. It uses LED backlighting to display aiming points on the lens. Available points are a 2 MOA dot, a 65 MOA circle or a combination of both.
The sight is operated with separate sets of buttons for the collimator as well as the thermal sight. The device meets the IP67 standard, which means that it will function problem-free even in demanding weather conditions. We adjust the collimator with the included tool. It adjusts by 0.5 MOA per click within a range of +/- 50 MOA. Thanks to the use of digital technology, the user has at his disposal an approximation of 1 to 5x.
Features:
- Closed collimator sight with thermal imaging
- Four operation modes: White Hot/Black Hot/Outline/Highlight
- Advanced sensor technology tracks 256 by 192 dots on matrix
- Collected image is displayed on integrated OLED screen
- Allows observation even after dark in low-light conditions
- The device can be successfully used in the middle of the day as well as in the darkest night
- Compact case, allows you to easily carry the sight in any military backpack
- 3 aiming points - 2 MOA dot, 65 MOA circle or a combination of both
- Adjustable by 0.5 MOA within a range of +/- 50 MOA
- Thermal imaging with digital zoom system
- Sensor resolution 256x192 and OLED display
- Operating frequency of 50 FPS
- Ability to record and take pictures
- 24 GB internal memory
- Powered by two 18350 rechargeable batteries or two CR123 batteries
- Charging and data transfer via magnetic USB cable
- Robust Picatinny rail mounting
- IP67 waterproof rating
| Technical data | |
|---|---|
| Dimensions | 87 x 48 x 92 mm |
| Aiming points | Dot 2 MOA Circle 65 MOA Dot 2 MOA + Circle 65 MOA |
| Digital magnification | 1x 3x 5x |
| Mounting | Picatinny |
| Adjustment | 0.5 MOA on click |
| Range of adjustment | 50 MOA |
| Power supply | 2x 18350 2x CR123 |
| Operating time of the thermal imaging module (2×18350) | 10 h |
| Protection class | IP67 |
| Thermo sensor resolution | 256x192 |
| Display resolution | 1024 x 768 |
| Display | OLED |
| Refresh rate | 50 FPS |
| Internal memory | 24 GB |
| Material | Aluminum 7075 T6 |
| Weight of the viewfinder | 478 g |
| Weight of batteries | 48 g |
Kit components:
- Closed collimator with thermal imaging DRS-TH
- 2x Rechargeable 18350 battery
- USB magnetic cable
- Collimator adjustment tool
- User manual
- Soft padded carrying case for carrying the sight
