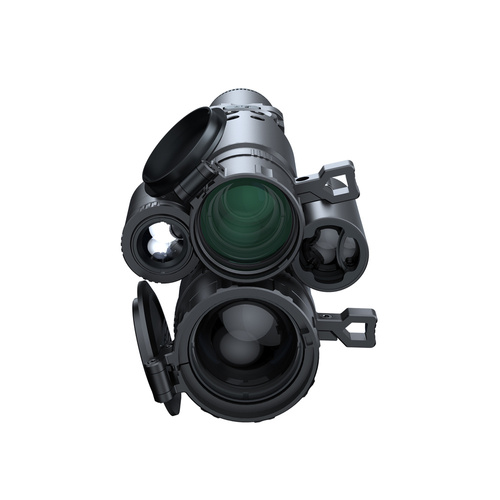

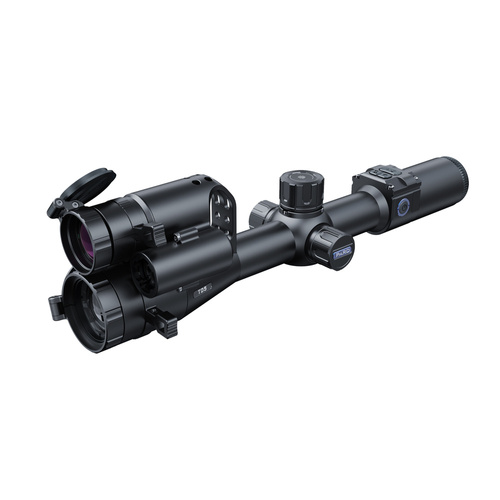

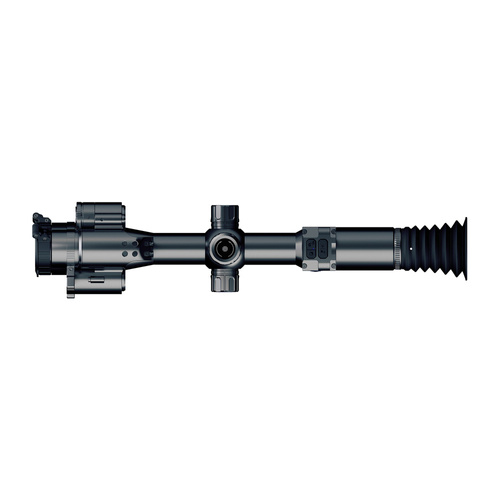

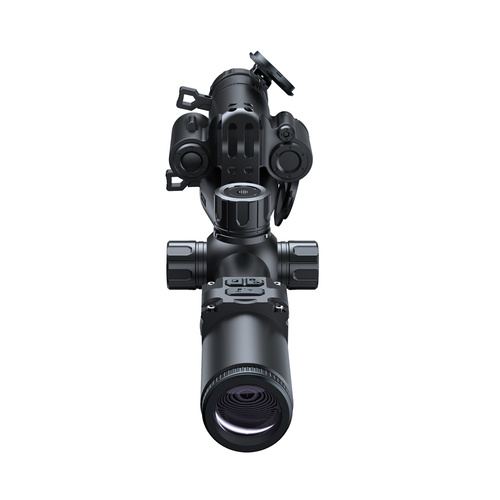

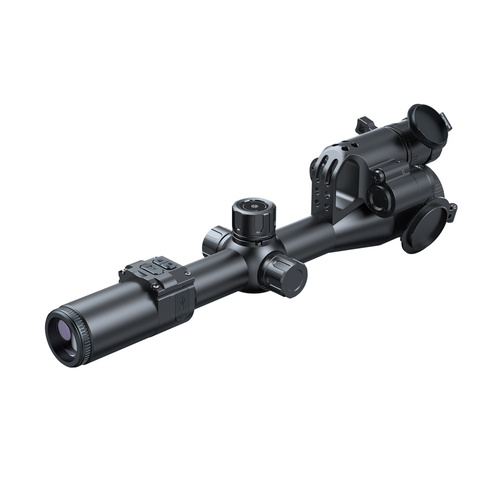

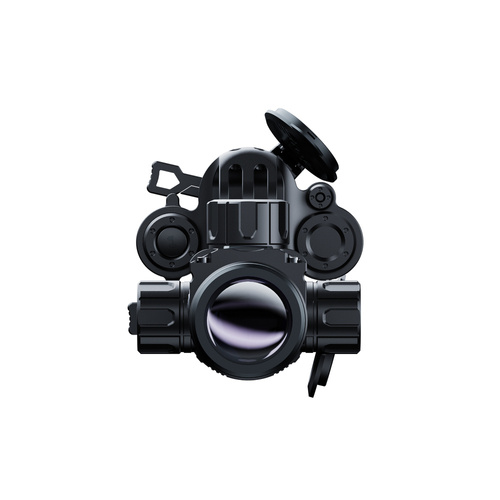

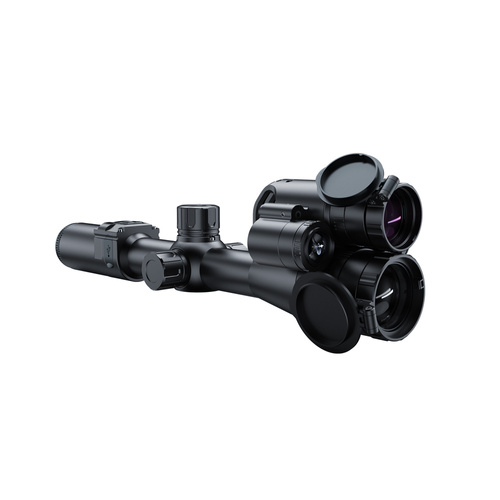

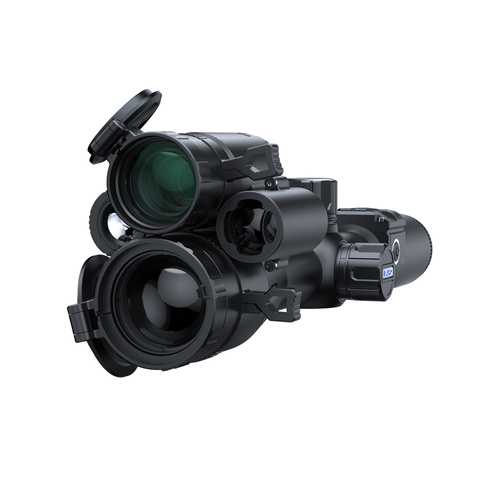

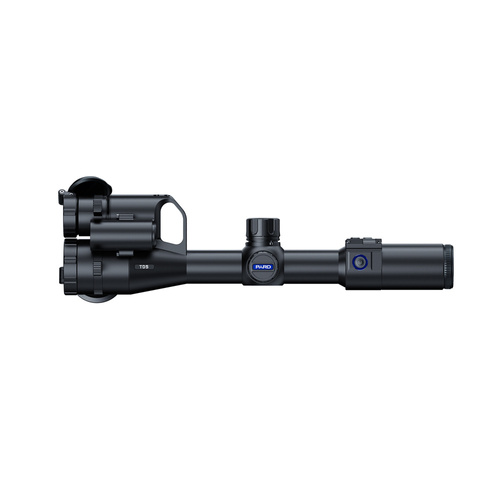

Pard - Night Vision and Thermal Imaging Sight with Rangefinder TD32-70 - Black - TD32-70/940/F
Night Vision and Thermal Imaging Sight with Laser Rangefinder TD32-70 Aluminum Black Pard TD32-70/940/F
The TD32 2-in-1 rangefinder combines thermal and night vision technology in one device. The 384 x 288 px thermal sensor with a sensitivity of ≤ 25 mK operates at 50 Hz for smooth target tracking. Visible light mode uses a CMOS sensor with 1920 x 1080 px resolution and 0.001 lux sensitivity, allowing operation in limited light conditions.
The optics include a 35mm lens in the thermal module with 3x optical magnification and a 70mm lens in the night vision module with 6.5x magnification. A 2x digital zoom gives a total magnification range of 6.5-13x. The image is presented on an 800 x 800 px IPS LCD display, with selectable image modes and PiP function.
The sight has a built-in laser rangefinder with a range of up to 1,000 meters and a ballistic calculator. A 5 Watt VCSEL infrared illuminator provides a range of up to 350 m, and three levels of adjustment allow you to match the performance to the environment. Additional features include a gyroscope, electronic compass, microphone and loop recording. The device supports photos in JPG format and videos in MP4 format, stored on micro-SD cards up to 128 GB.
The housing is made of aluminum, meets the IP67 waterproof standard and can withstand a recoil of up to 6,000 J. Power is provided by a Li-ion 21700 rechargeable battery with up to 6 hours of runtime, charged via a USB-C port or an external power supply.
Features:
- 2-in-1 viewfinder combining thermal imaging and night vision with laser rangefinder
- Thermal imager with 384 x 288 px sensor with sensitivity ≤ 25 mK and 50 Hz refresh rate
- Digital CMOS night vision sensor with 1920 x 1080 px resolution and 0.001 lux sensitivity
- Optical magnification of 3x in thermal mode and 6.5x in night vision mode
- Digital zoom up to 2x, total zoom range up to 13x
- 800 x 800 px IPS LCD display with image and PiP modes
- Built-in laser rangefinder with up to 1,000m range and ballistic calculator
- 5W VCSEL illuminator with up to 350m range
- Additional features: gyroscope, electronic compass, loop recording, microphone
- Storage of photos and videos on a micro-SD card up to 128 GB
- Aluminum housing, IP67 rating
- Resistance to recoil up to 6000 J
| Technical specifications | |
|---|---|
| Thermal imaging sensor | 384 x 288 px |
| Pixel size | 12 µm |
| NETD | ≤ 25 mK |
| Refresh rate | 50 Hz |
| Visible light sensor | CMOS 1920 x 1080 px |
| Sensitivity | 0.001 lux |
| Thermal imaging lens | 35 mm |
| Thermal imaging optical magnification | 3x |
| Night vision lens | 70 mm |
| Optical magnification of night vision | 6,5x |
| Digital zoom | 2x |
| Thermal imaging field of view | 5.7° vertically 5.7° horizontally 8° diagonally |
| Night vision field of view | 2.6° vertically 2.6° horizontally 3.6° obliquely |
| Parallax | from 3 m |
| Distance from eye | 100 mm |
| Diopter adjustment | -5 to +3 |
| Pictures | 2592 x 1944 px |
| Videos | Thermal imaging 1024 x 768 px Night vision 1440 x 1080 px |
| Range of laser rangefinder | 1000 m |
| Illuminator | VCSEL 5 W |
| Illuminator range | up to 350 m |
| Power supply | Li-ion rechargeable battery 21700 3.7 V |
| Operating time | up to 6 h |
| Protection class | IP67 |
| Working temperature | -20 °C to +50 °C |
| Shock resistance | up to 6000 J |
| Material | Aluminum |
| Weight | 800 g |
| Color | Black |
