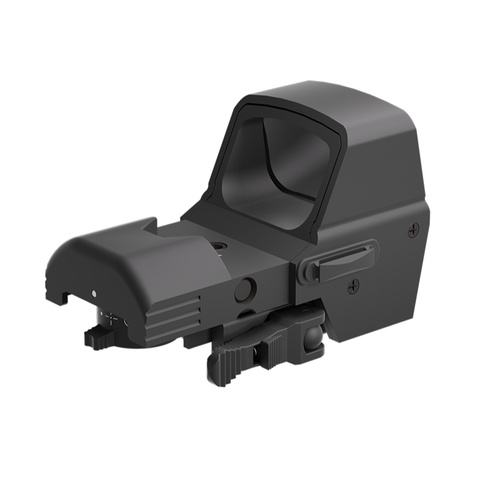

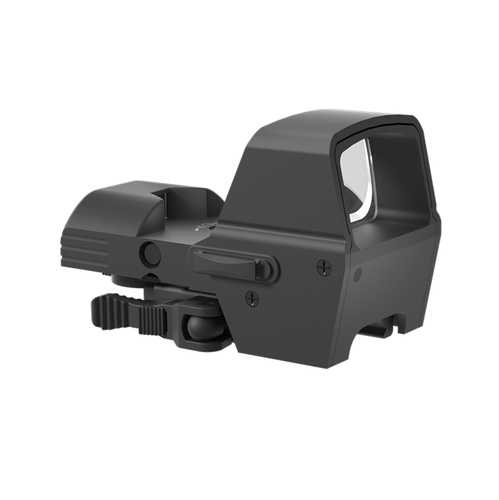

VictOptics - Open Collimator SRD 1x23x33 Four-Reticle - Picatinny QD - Black - RDSL36
Open Collimator SRD 1x23x33 Four-Reticle Picatinny QD Black VictOptics RDSL36
The SRD reflex-type collimator from VictOptics features up to four types of aiming marks: dot, crosshair, circle and crosshair in the middle of the circle. The dot in the center is 3.5 MOA in size with vertical and horizontal adjustment of 1 MOA per click. The appearance of the sight can be conveniently changed with a slider on the back of the case. The unit has two colors of illumination, red and green.

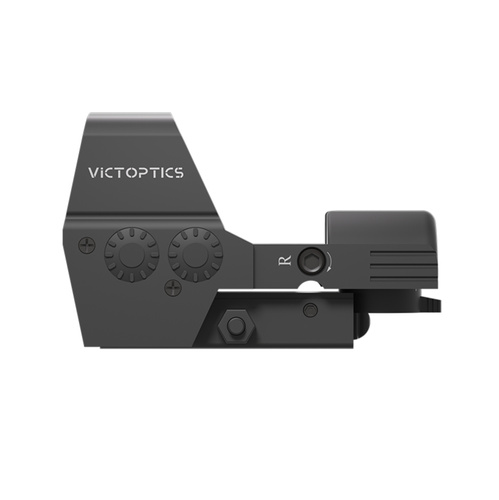

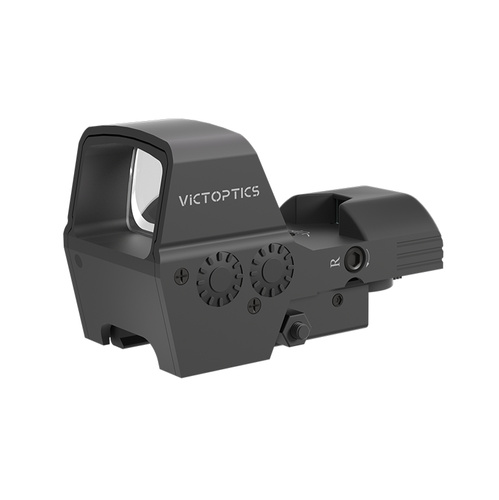

For each color of light, there are buttons on the side of the collimator housing to adjust the light intensity. With up to six degrees of brightness, the device provides good visibility even in difficult conditions. The device is powered by a CR2032 battery, located in a slide-out tray on the side of the housing. Mounting to the Picatinny rail is done with a QD lever. The aluminum body is made of anodized 6061-T6 alloy.
The 23 x 33 mm target window provides a wide field of view. The collimator is vertically and horizontally adjustable with an allen screw, allowing you to adjust the aiming point to your chosen platform. Thanks to the Picatinny standard mounting, it is possible to combine the collimator with an enlarger or other supporting sight.
Features:
- VictOptics collimator equipped with four aiming marks
- Illumination in red or green
- Six levels of brightness adjustment for each light color
- Wide field of view due to the large size of the aiming window
- Vertical and horizontal adjustment
- QD mount for Picatinny rail
- 6061-T6 anodized aluminum housing
| Technical specifications | |
|---|---|
| Target window size | 23 x 33 mm (0.85 x 1.0″) |
| Targeting reticles | Dot 3.5 MOACrosshairCircleCircle + Crosshair |
| Illumination color | RedGreen |
| Backlight adjustment | 6 brightness levels |
| Power supply | CR2032 battery |
| Mounting type | Picatinny QD |
| Vertical adjustment range | 80 MOA |
| Horizontal adjustment range | 80 MOA |
| Adjustment click value | 1 MOA |
| Waterproof class | IPX4 |
| Dimensions | 90 x 58 x 56 mm |
| Material | 6061-T6 aircraft aluminum |
| Weight | 193 g |
| Color | Black |
